Expanding Pins

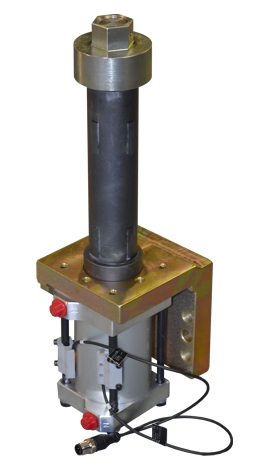

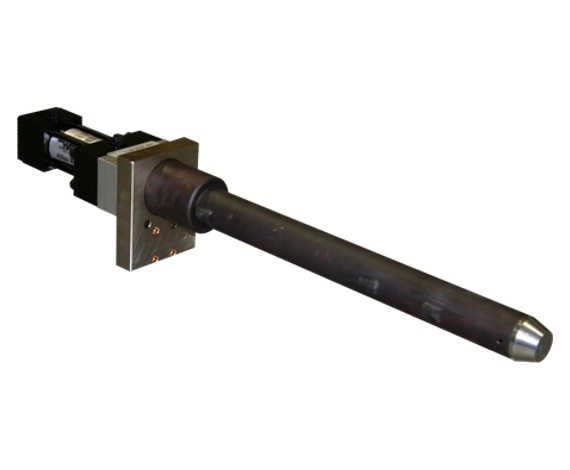

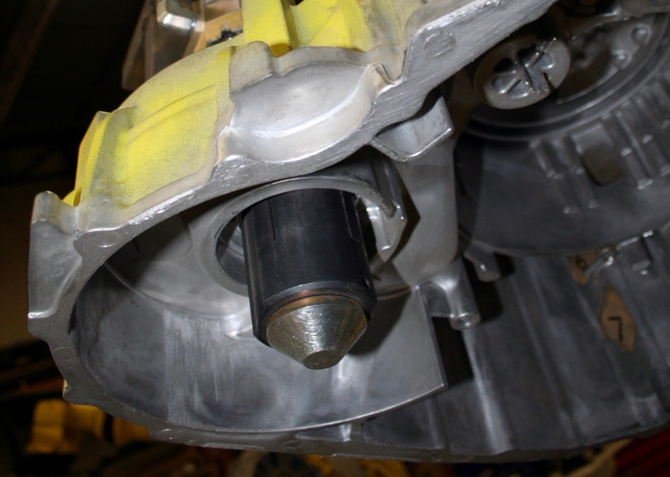

Expanding pins feature fingers that are located below the surface of the pin. When actuated, the fingers expand to center and locate the part, serving as an internal clamp. Mechanical advantage keeps the fingers in position until the actuator retracts. Ease of loading and unloading is enabled, while providing the desired accuracy.

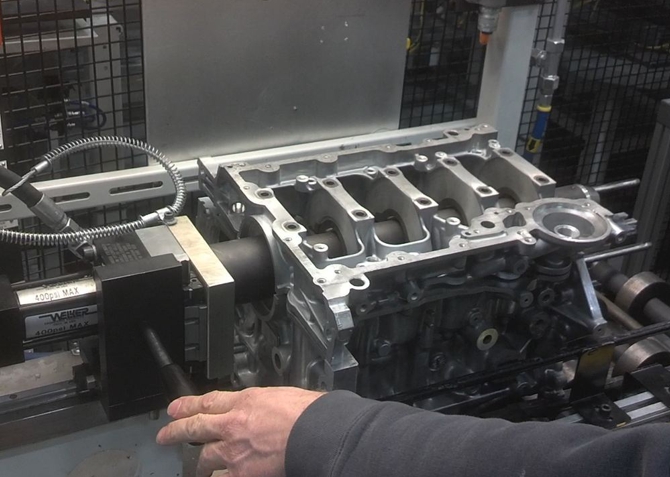

• Capable of locating large and heavy fabrications
• Provides for easy load and unload of work piece

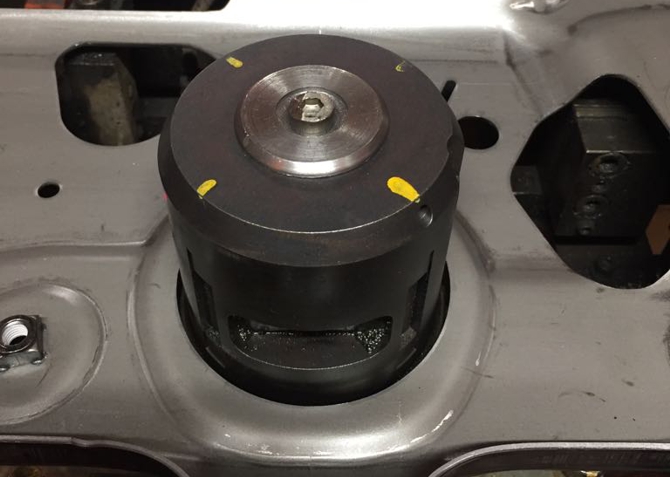

• Allows for complete access to the part
• Two, three, or four finger designs
• Multiple diameter mandrels, 30-200mm diameter
• Optional solid state cylinder switch

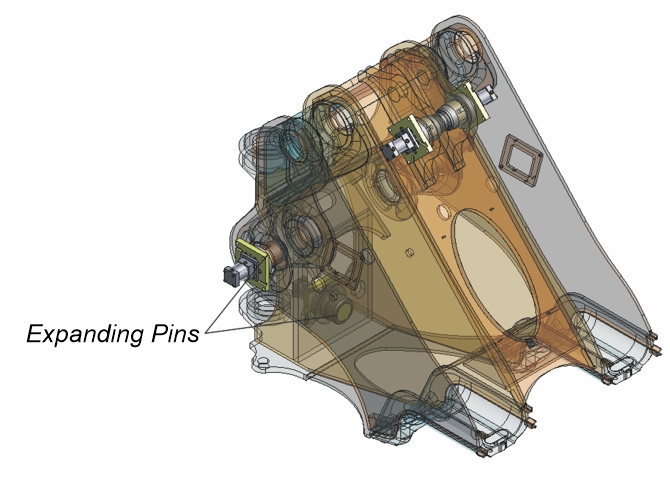

Custom designed per application ~ please see Catalog for worksheet

Catalog

Maintenance Manual
